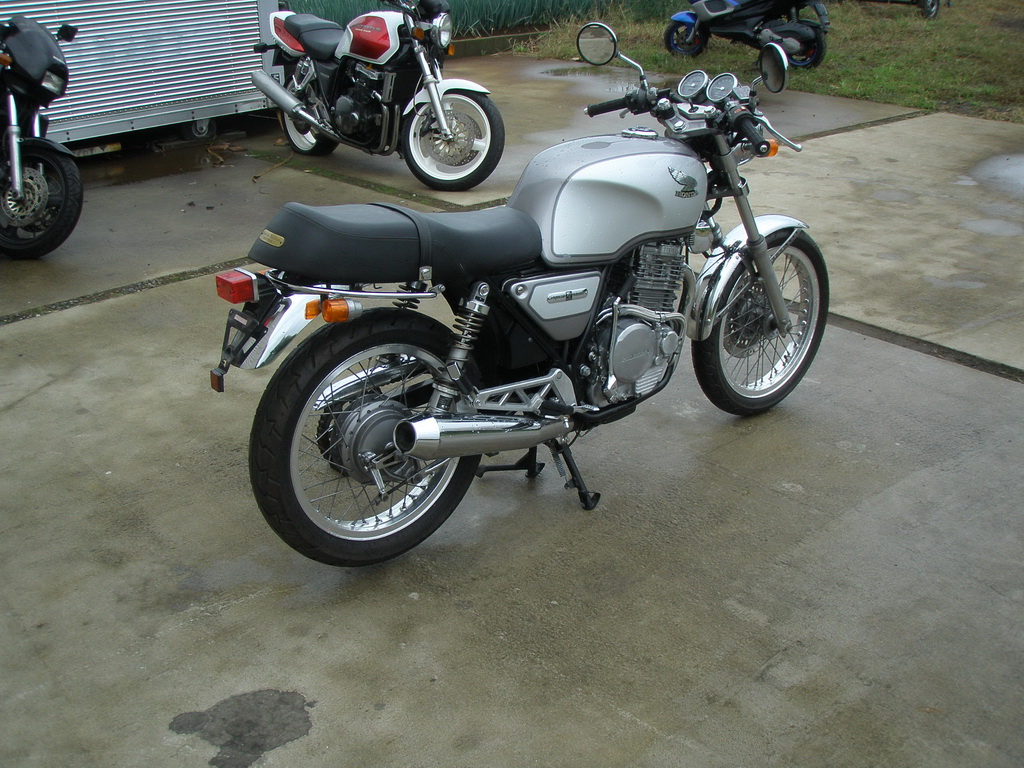

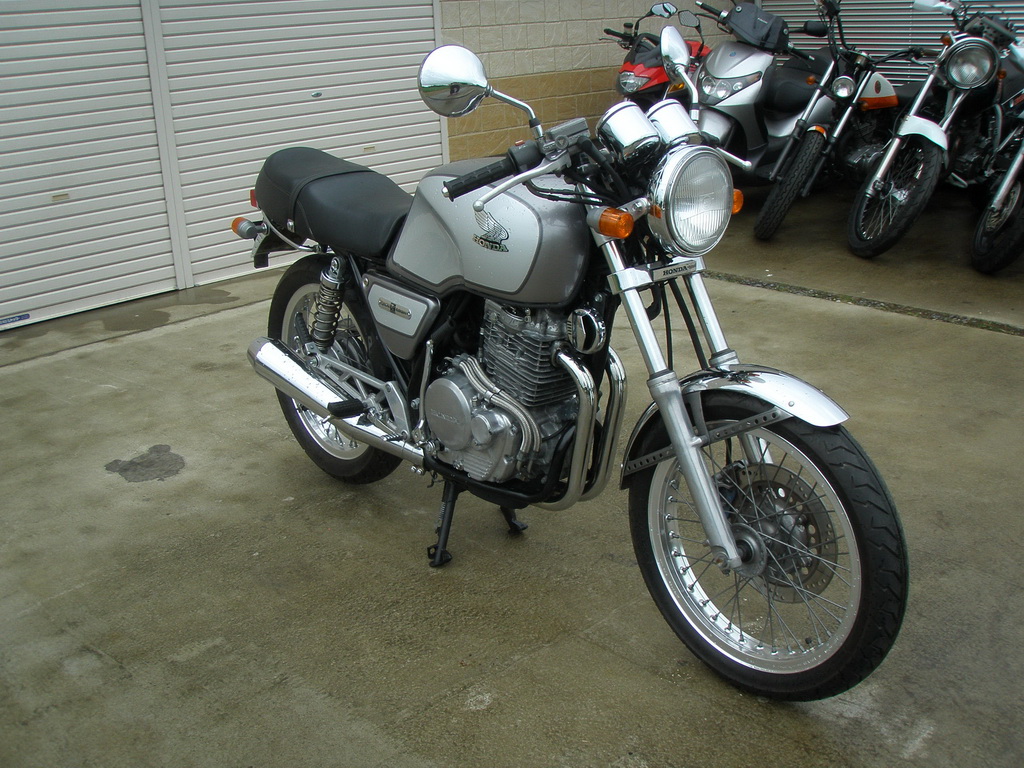

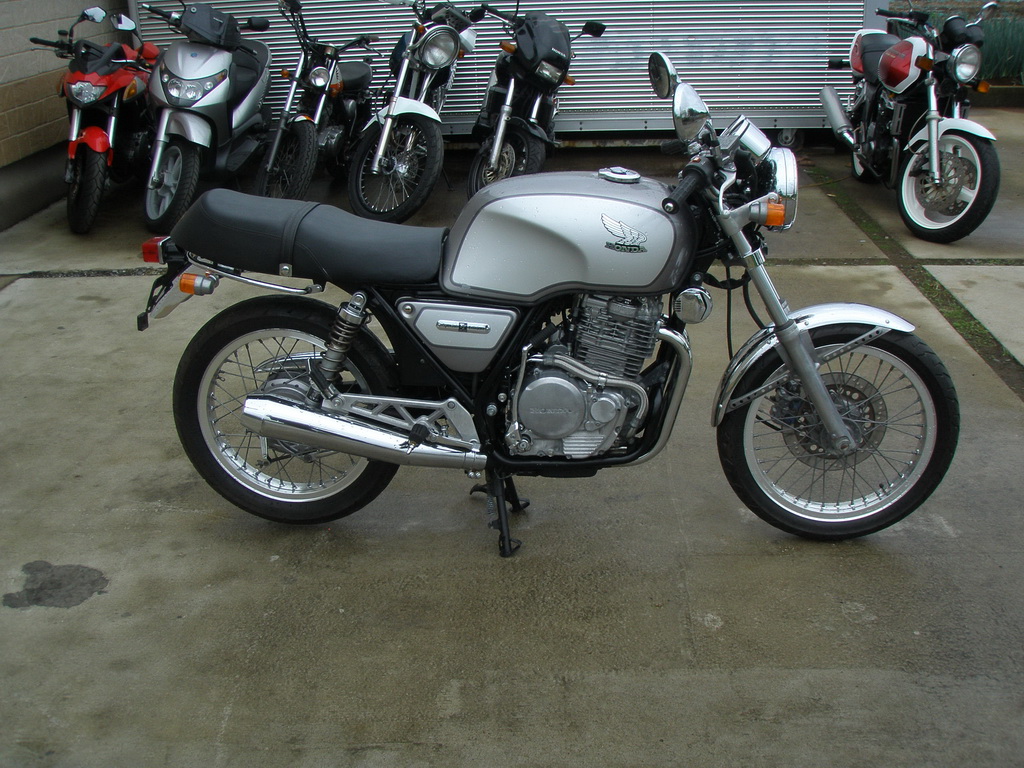

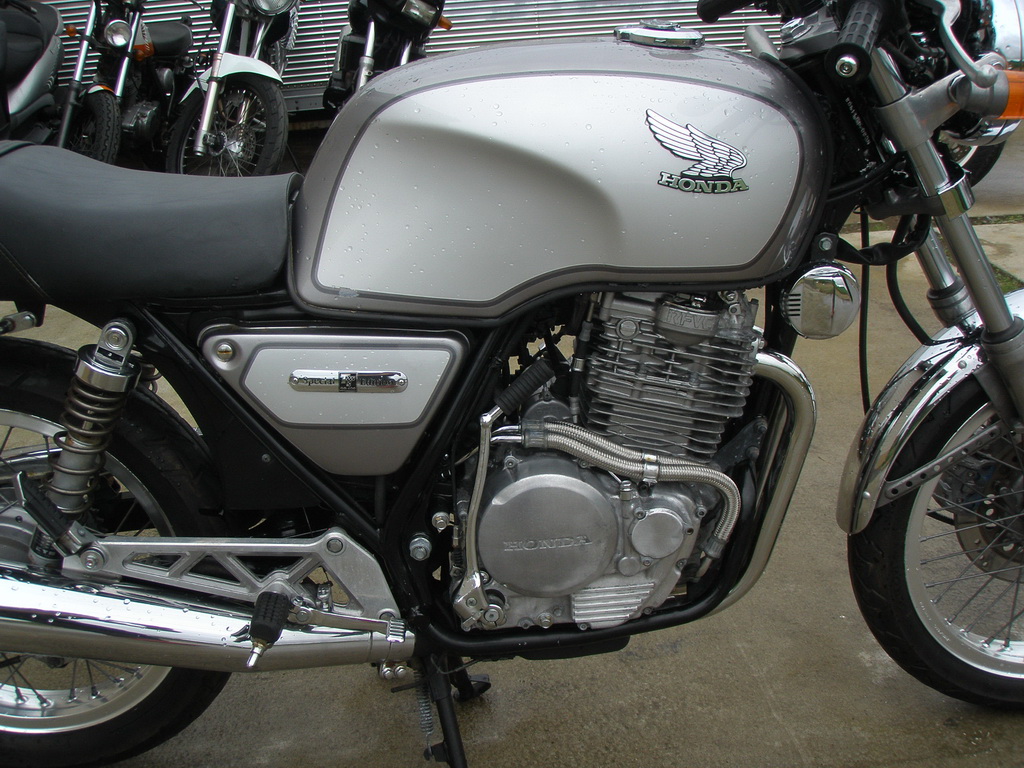

#0555 Мотоцикл Honda GB400TT
статус:
Модель: GB400TT
Год: 1988
Объем: 400 см3
Пробег: 15098 км.
из
Дополнительная информация

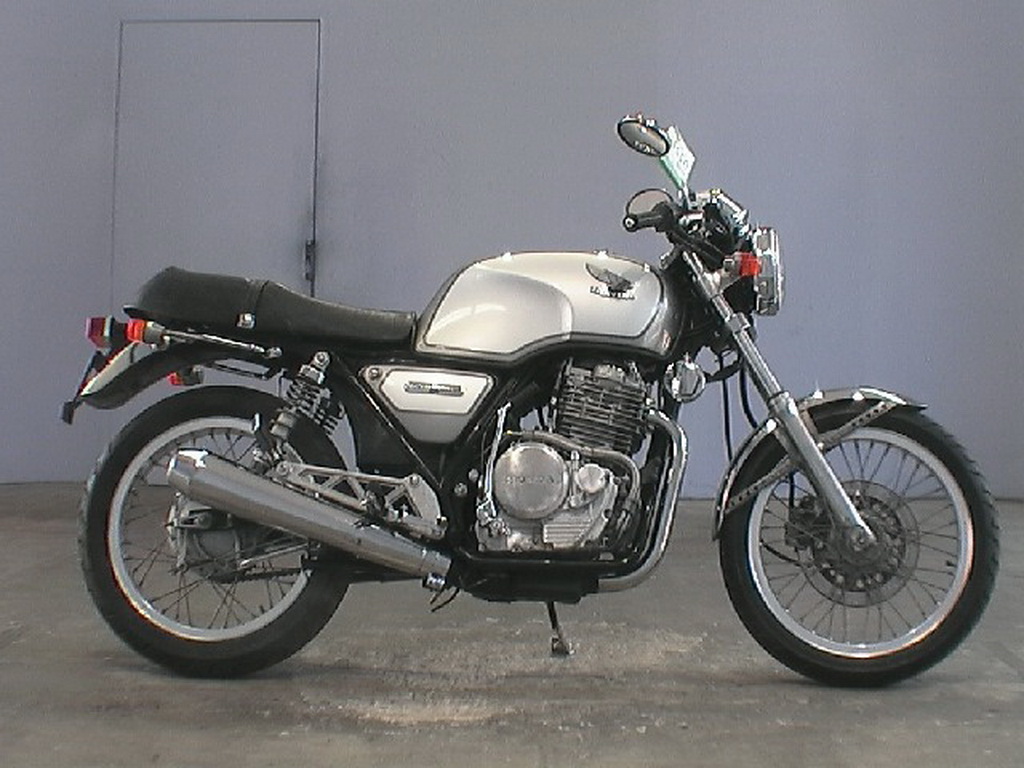

Ретро мотоцикл GB400TT от Honda
Manufacturer name HONDA
Car species name GB250 club man
Type MC10
Total cubic displacement 249 cc
Dry weight 132 kg
Fixed area fuel economy 52.2 km/L (at the time of 50 km travelling)
Total length x full x total height 2090 mm x 685 mm x 1035 mm
Manufacturer desired retail price (Tokyo area) 448,000 Yen

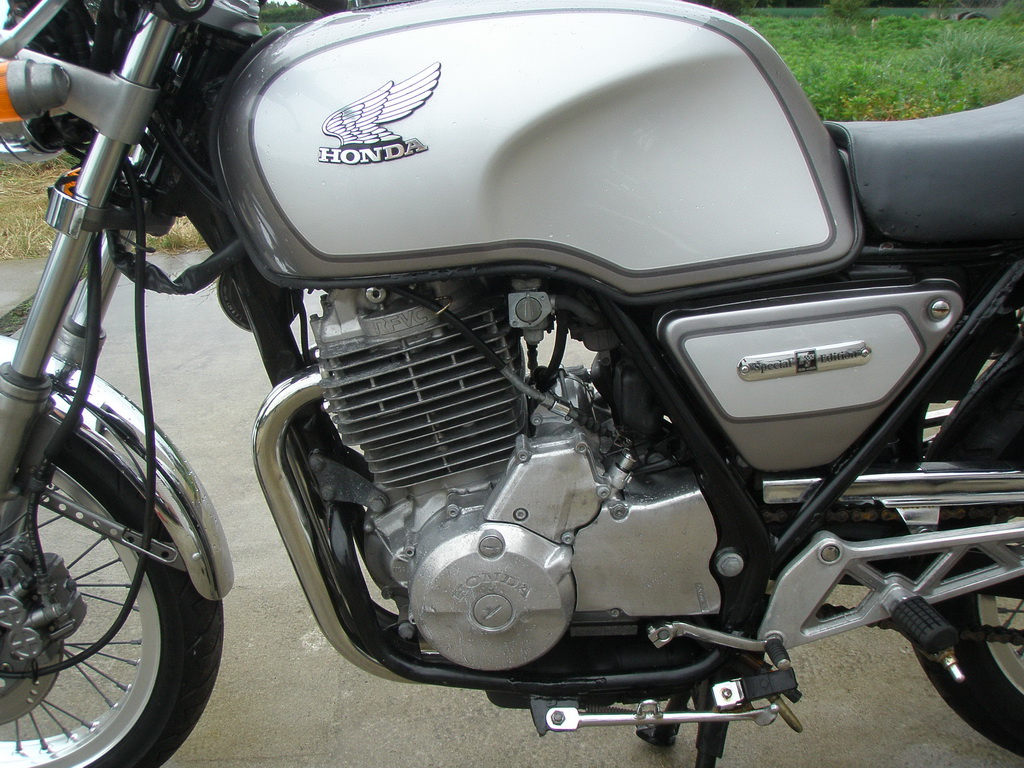

Engine
Type Air cooled 4 cycle DOHC4 valve one cylinder
Engine type MC10E
Total cubic displacement 249 cc
Compression ratio 10.2
Inside diameter (bore) 72.0 mm
Distance (stroke) 61.3 mm
Fuel supply system Carburetor
Carburetor type VE17
Ignition system CDI type magnetic ignition
Lubricating system Force splash combined use system
Starting system Self system
Motor oil capacity 1.8 L
Fuel tank capacity 15 L
Efficiency
The highest output - kw (30 ps)/9000 rpm
Largest torque - N m (2.5 kg m)/7500 rpm
Full speed -
Fuel economy 52.2 km/L (at the time of 50 km travelling)
Minimum turning radius 2.4 m
Equipment
One-touch clutch lever adjustment -
One-touch brake lever adjustment -
Fuel gauge -
Twin trip meter -
Clock -
Hazard lamp -
Robbery prevention device -
Helmet receipt space -
Something related to body
Frame type Semi-double cradle
Caster 26 degrees/30 minutes
Trail 96 mm
Tire size (before) 90/90- 1851 S
Tire size (after) 110/90- 1861 S
Wheel travel (before) -
Wheel travel (after) -
Wheel size (before) -
Wheel size (after) -

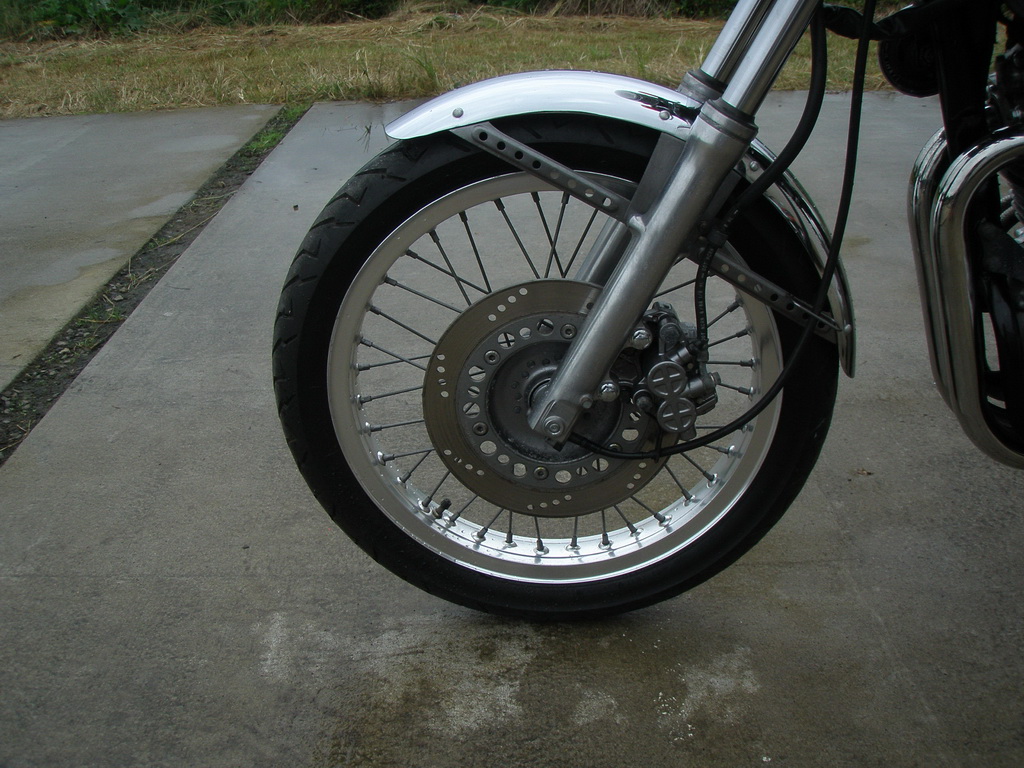

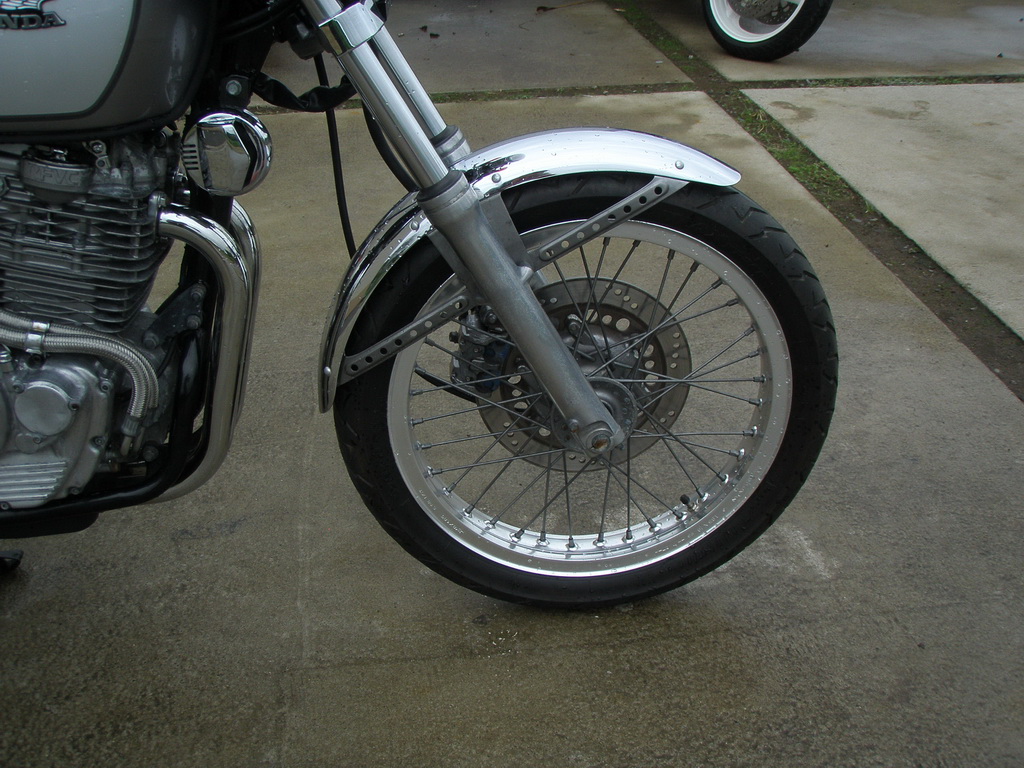

Brake (before) Hydraulic type disk
Brake (after) Mechanical cable type leading [toredeingu]
Suspension system (before) Telescopic system
Suspension system (after) Swing arm system
Steering wheel angle (the right) -
Steering wheel angle (the left) -
Transmission
Clutch type Wet multiple plate coil springs
Transmission type Regular gearing type 6 step return
Change gear ratio 1st gear 2.923
2nd gear 2.000
3rd gear 1.550
4th gear 1.304
5 speeds 1.125
6 speeds 1.000
Primary reduction gear ratio 2.826
Secondary reduction gear ratio 2.714
Variable speed car change gear ratio -
