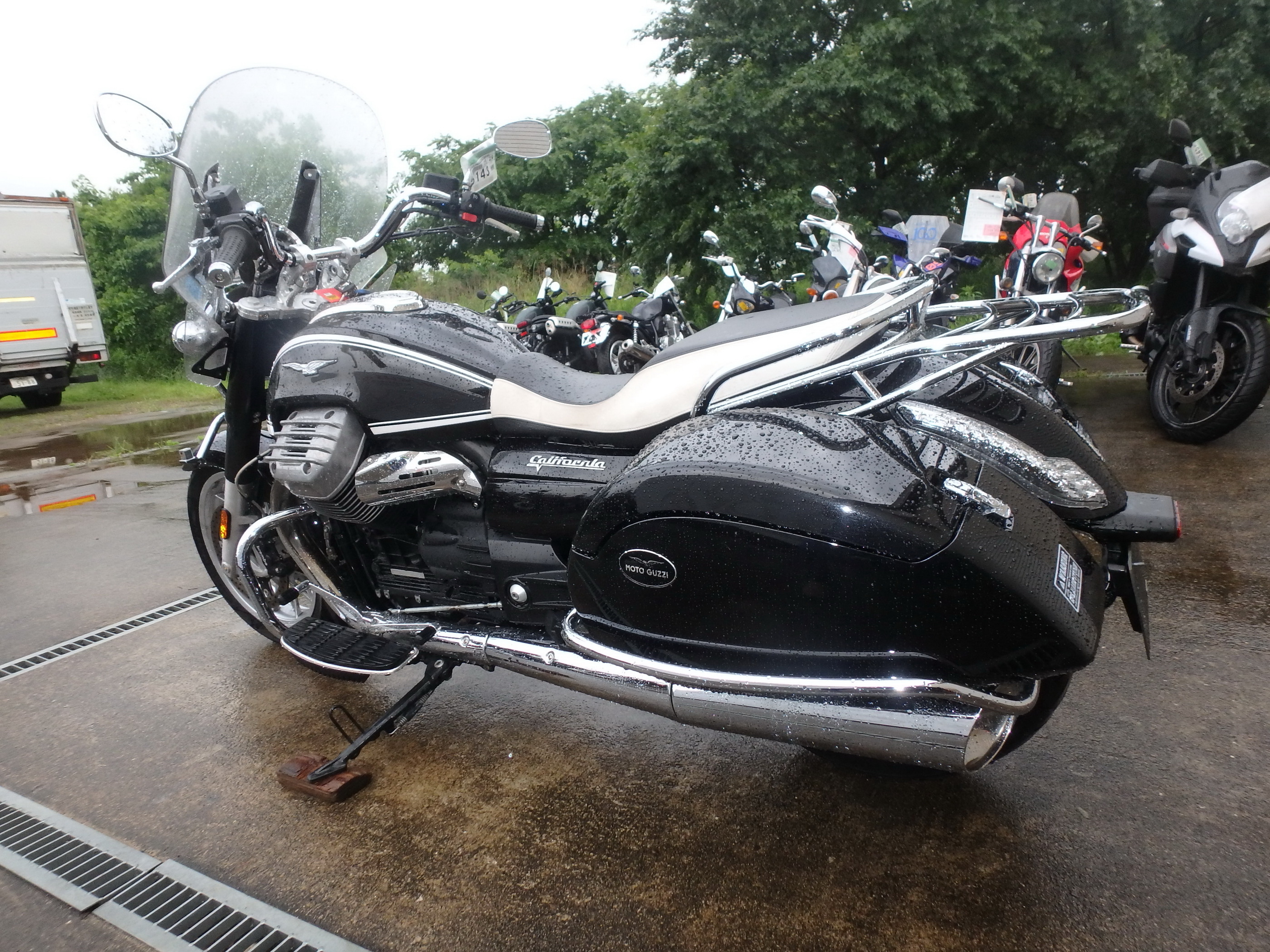

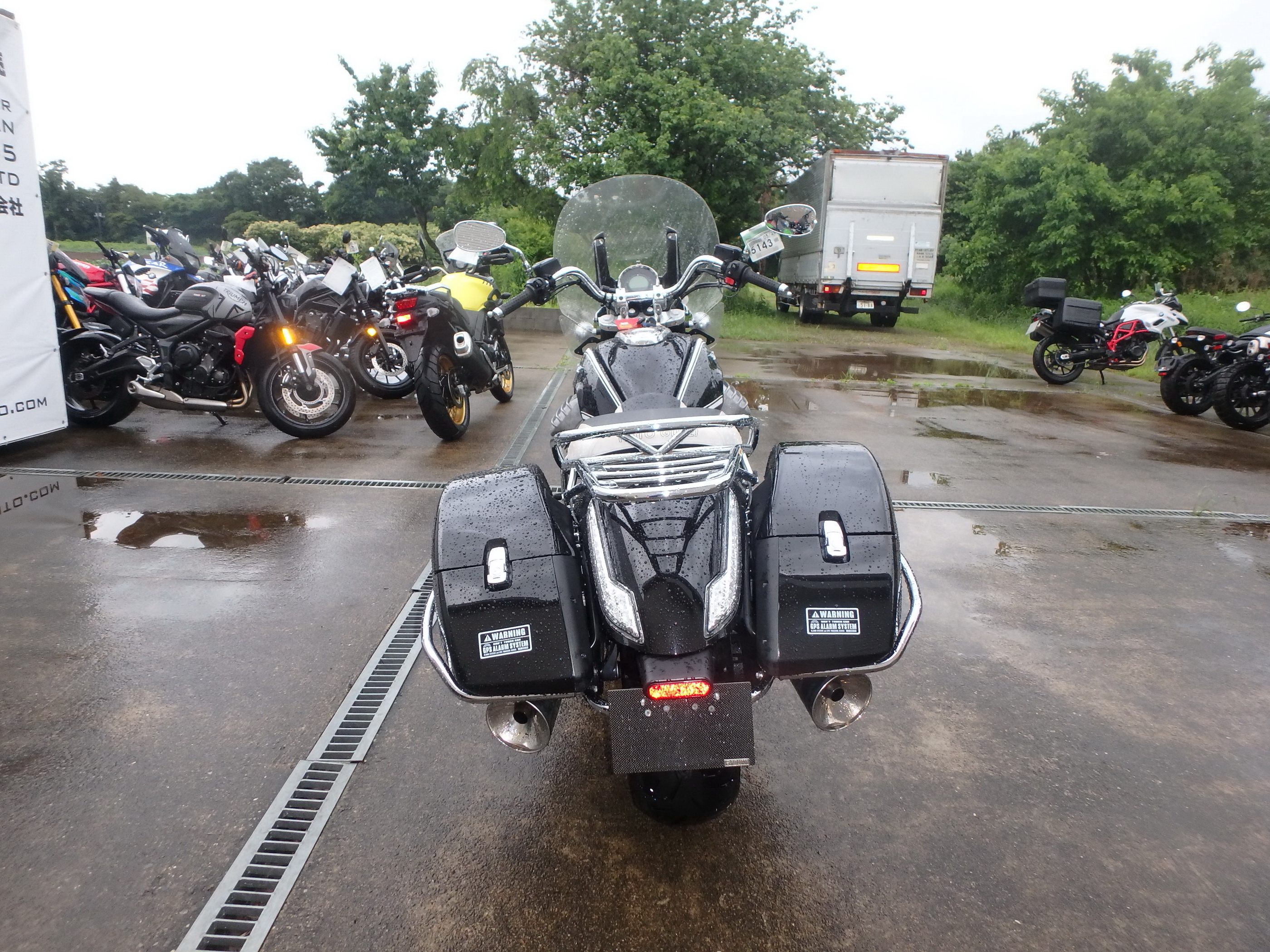

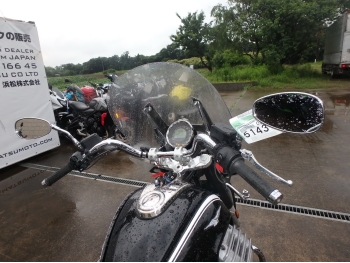

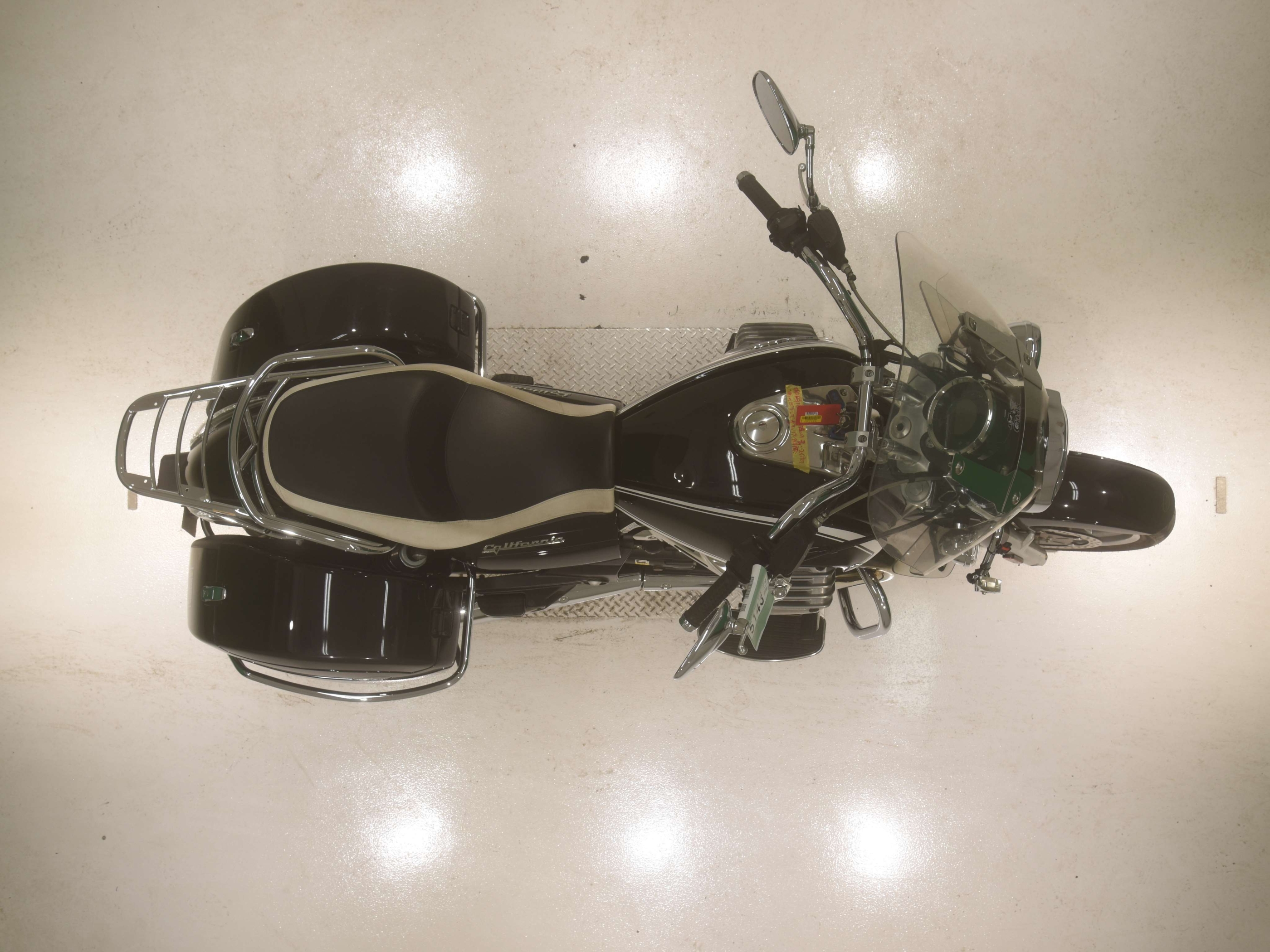

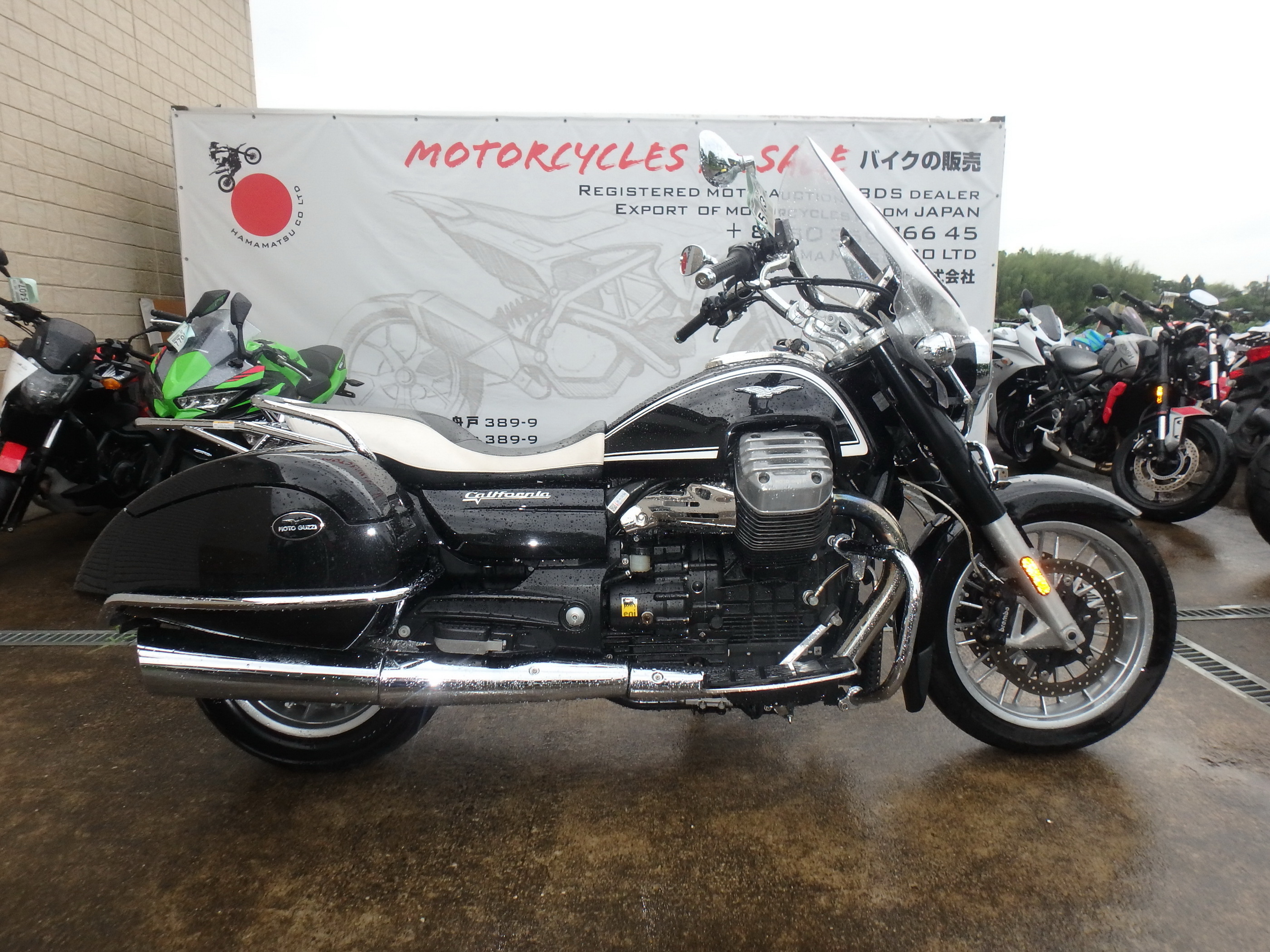

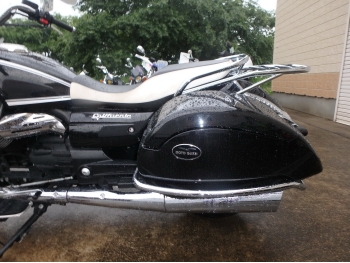

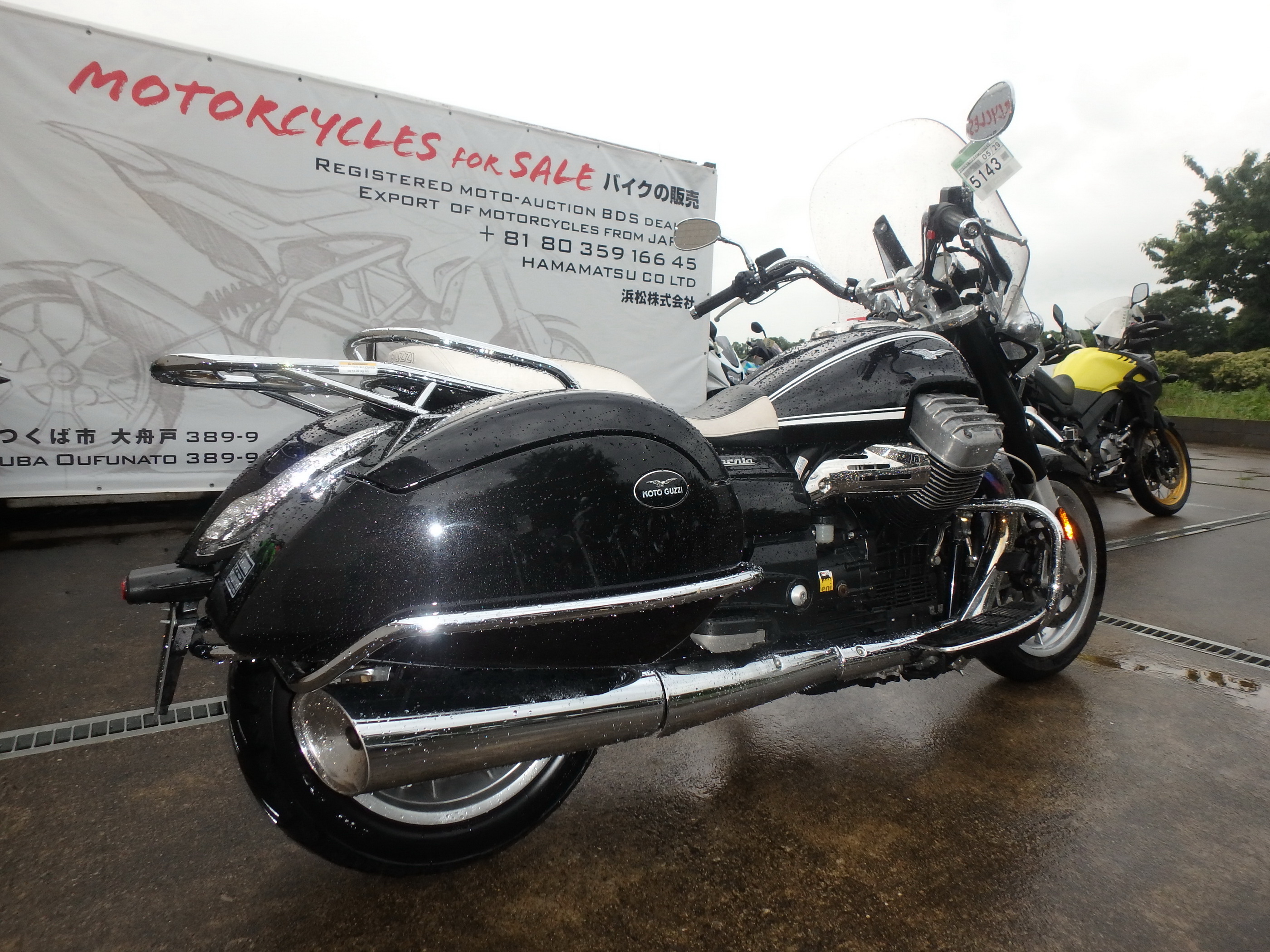

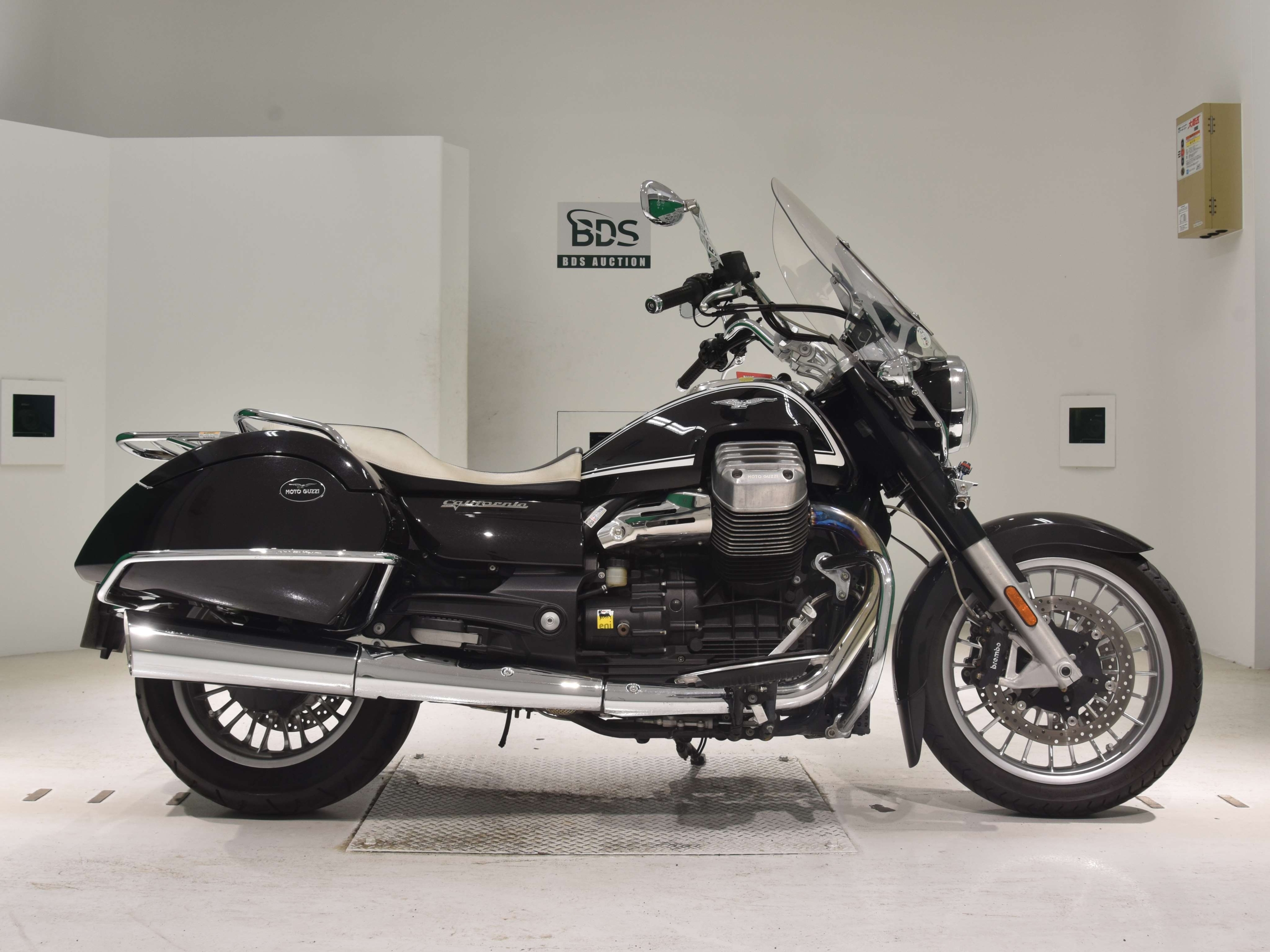

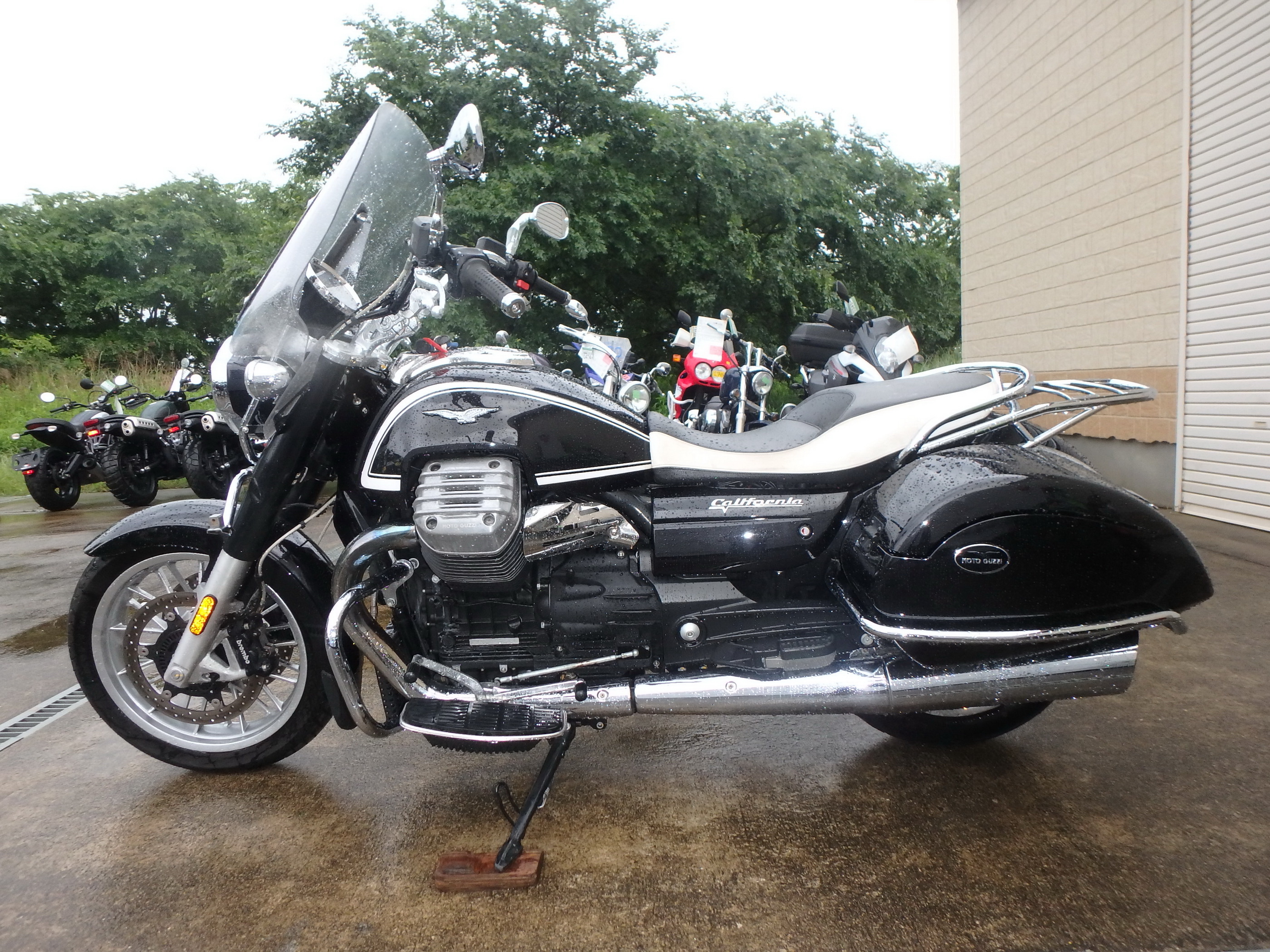

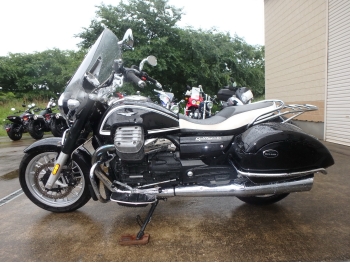

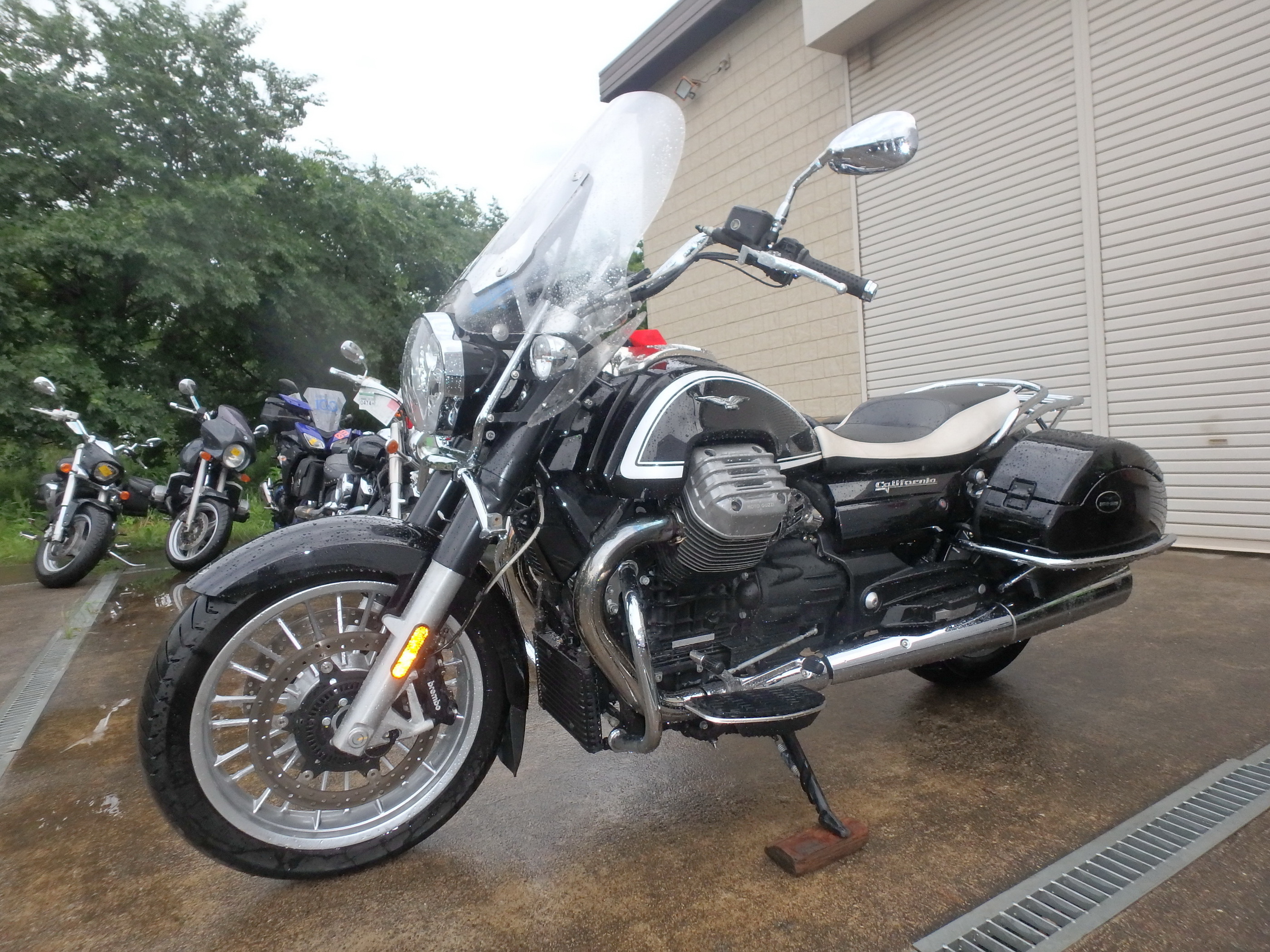

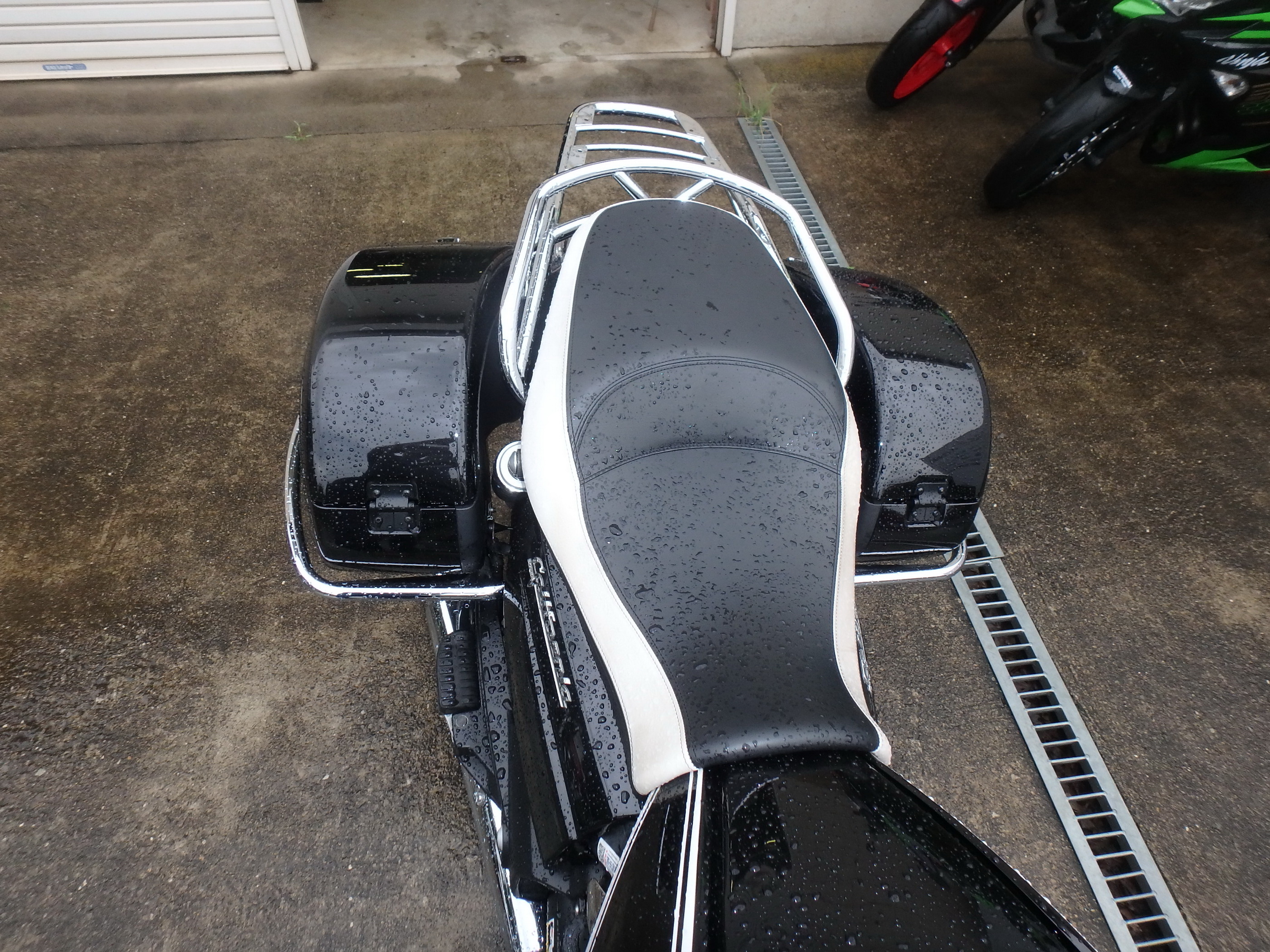

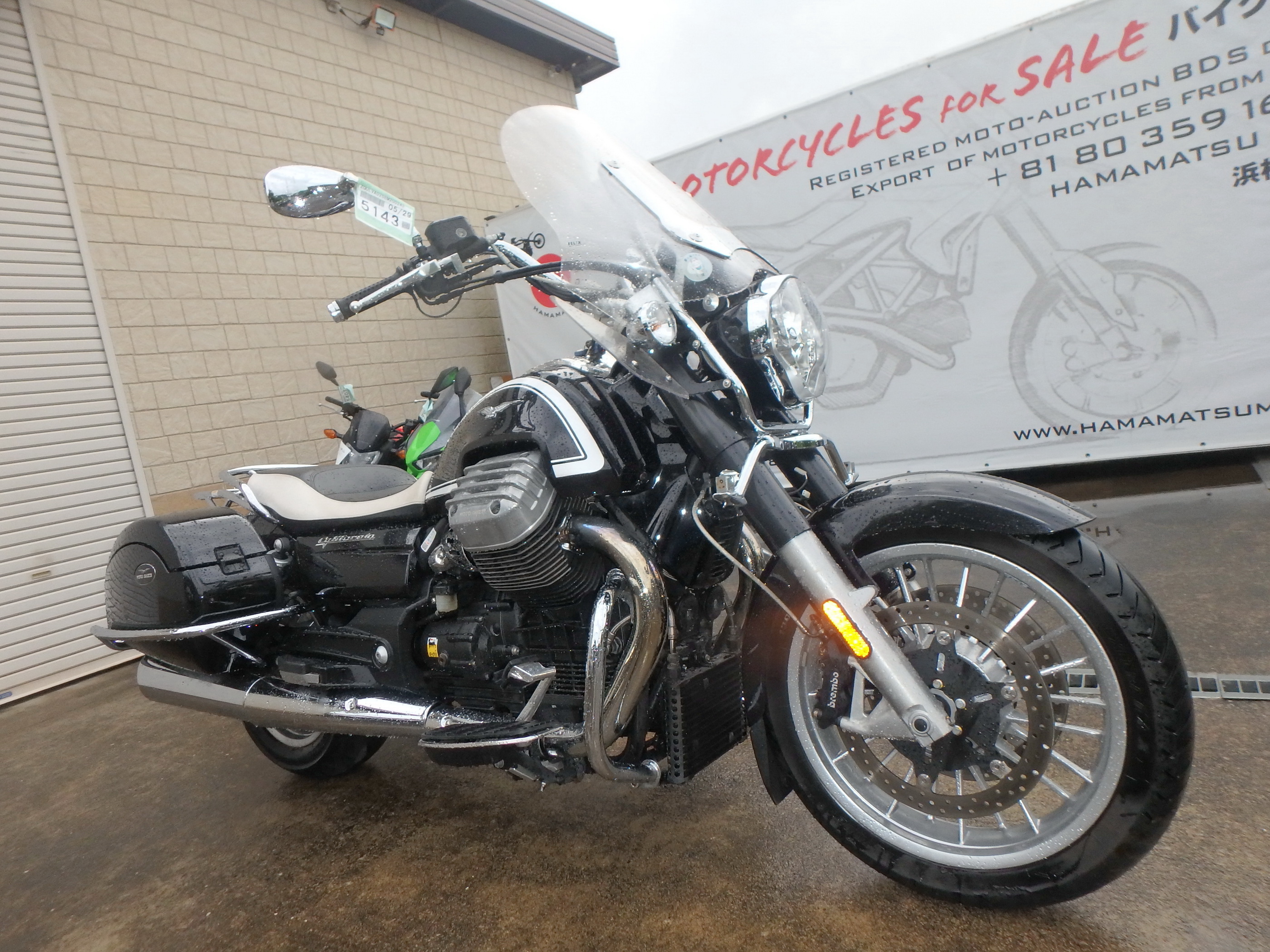

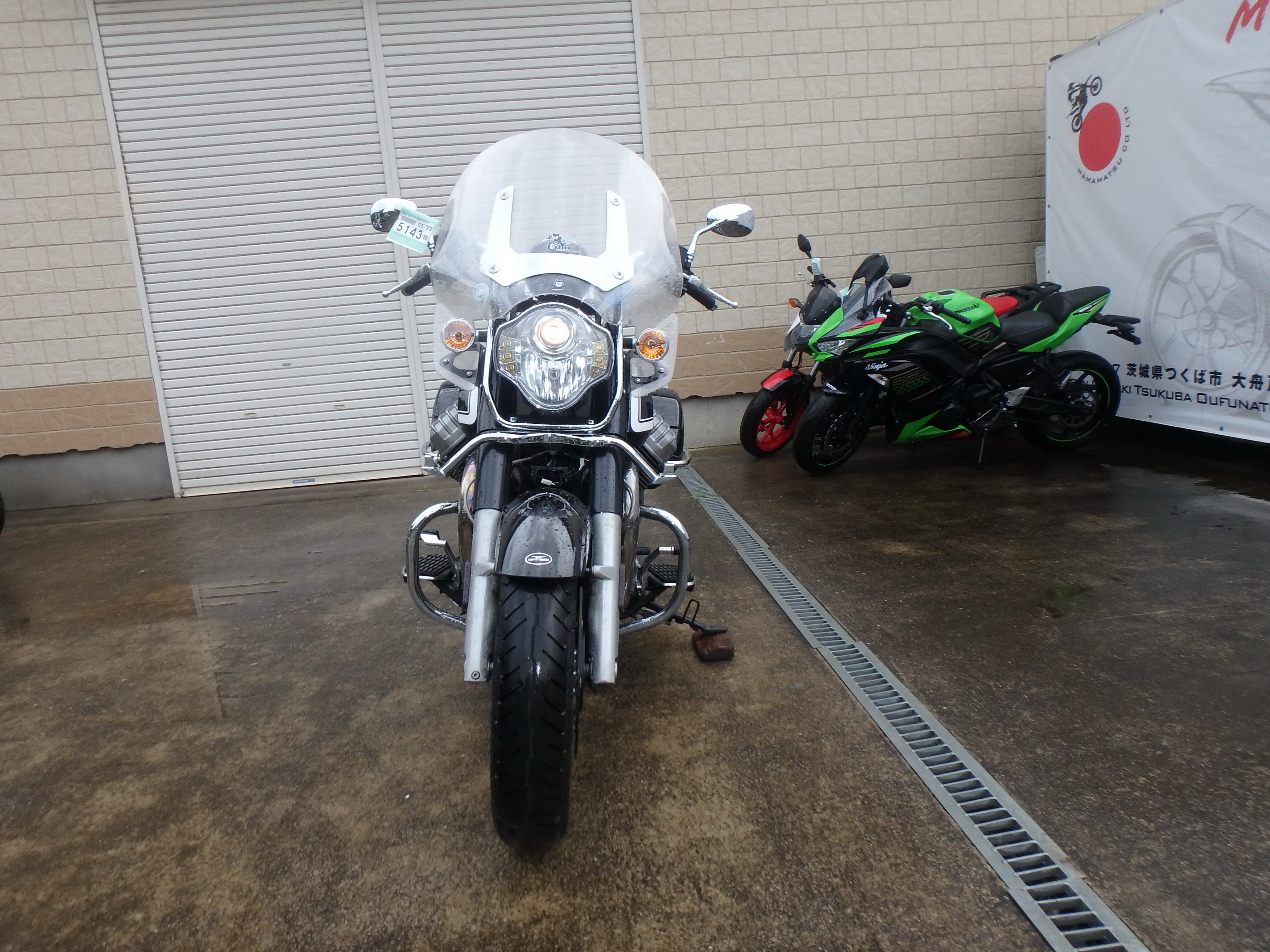

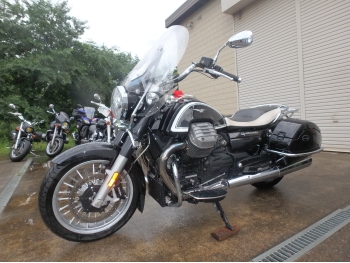

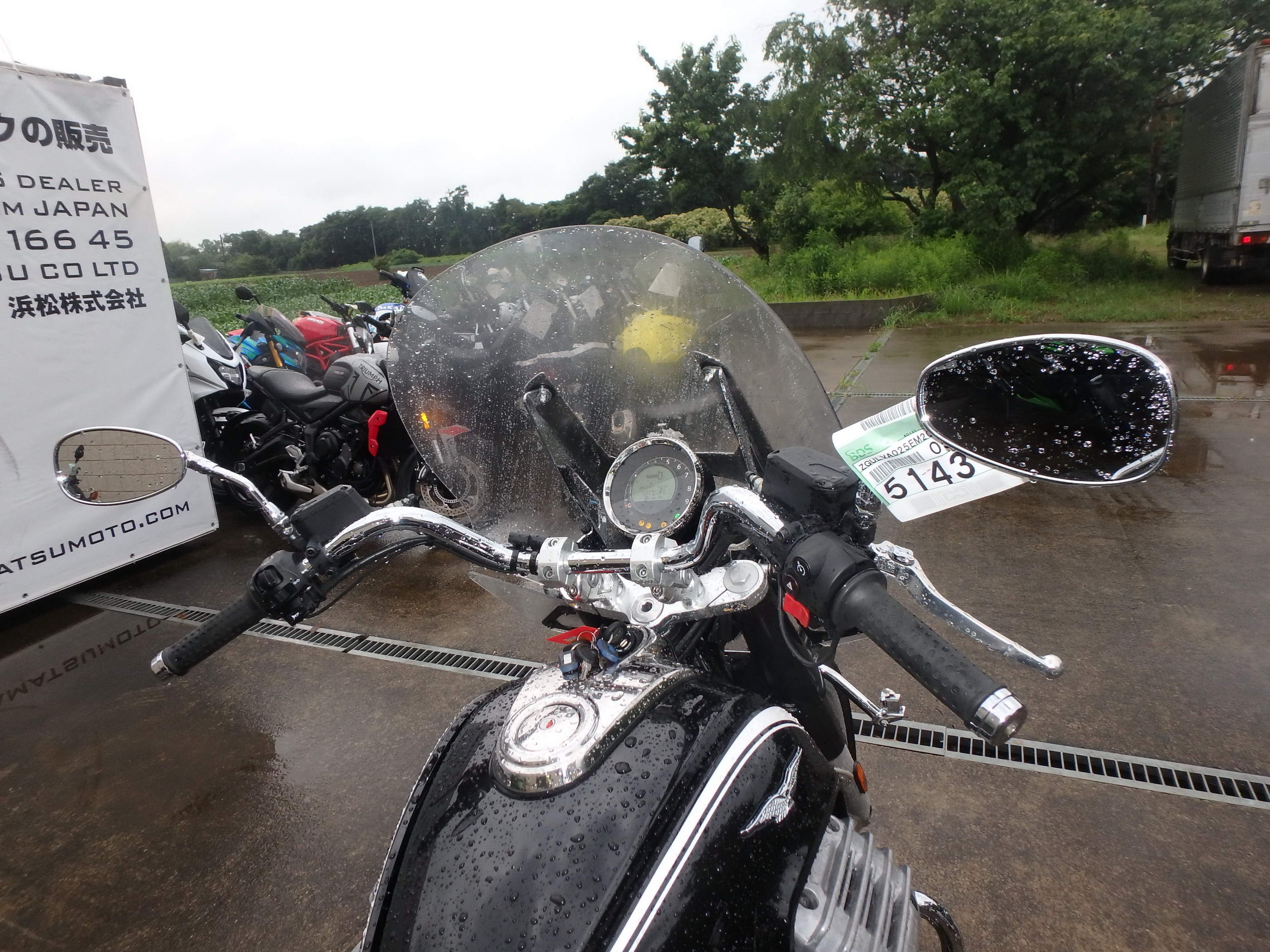

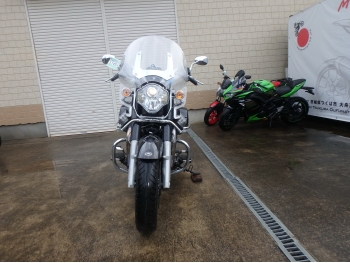

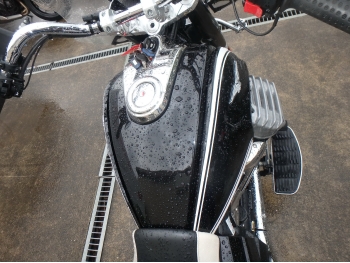

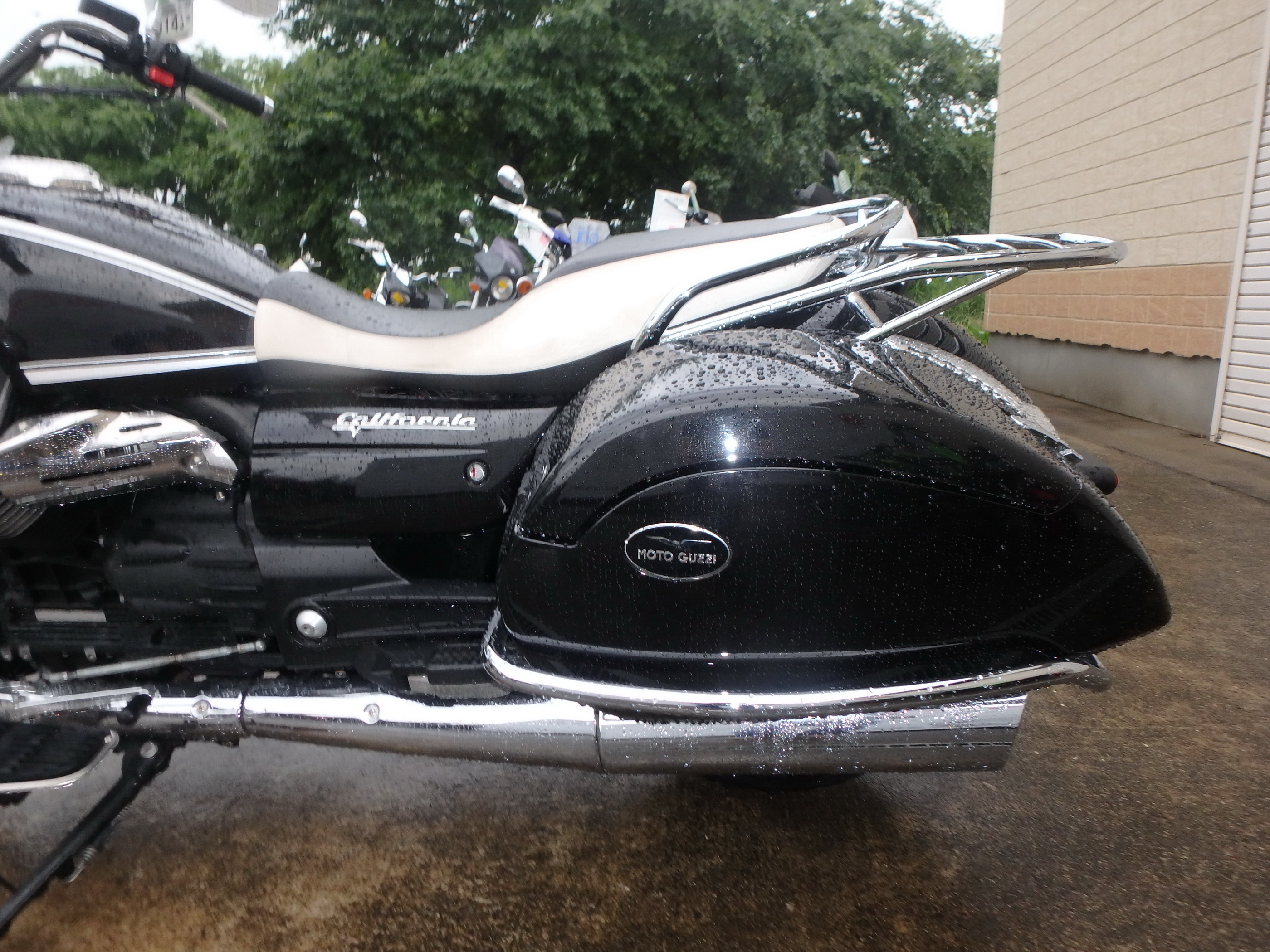

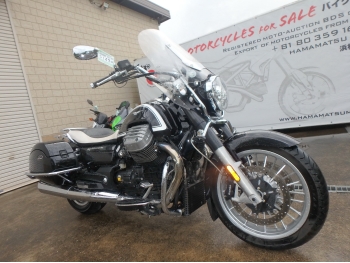

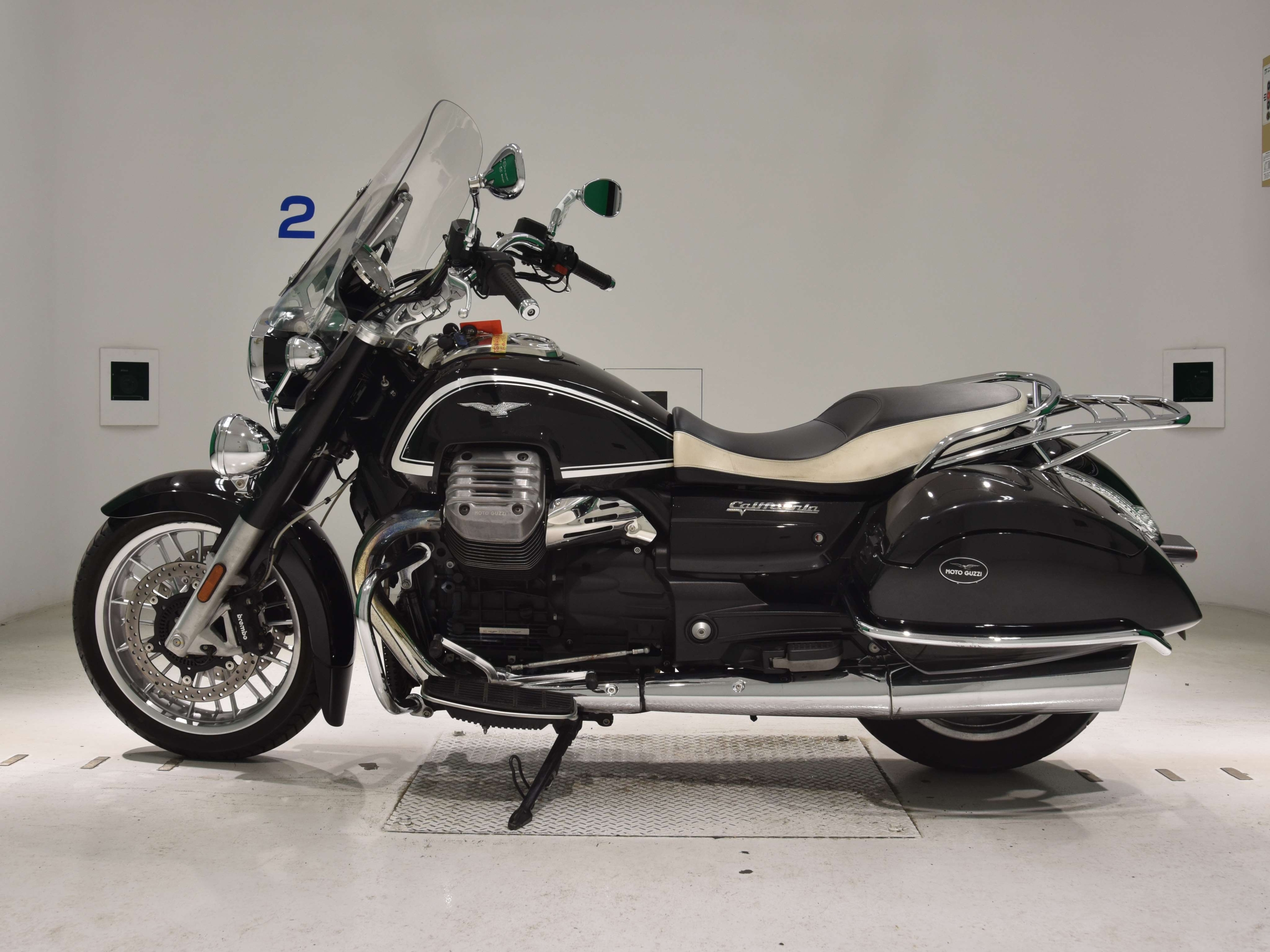

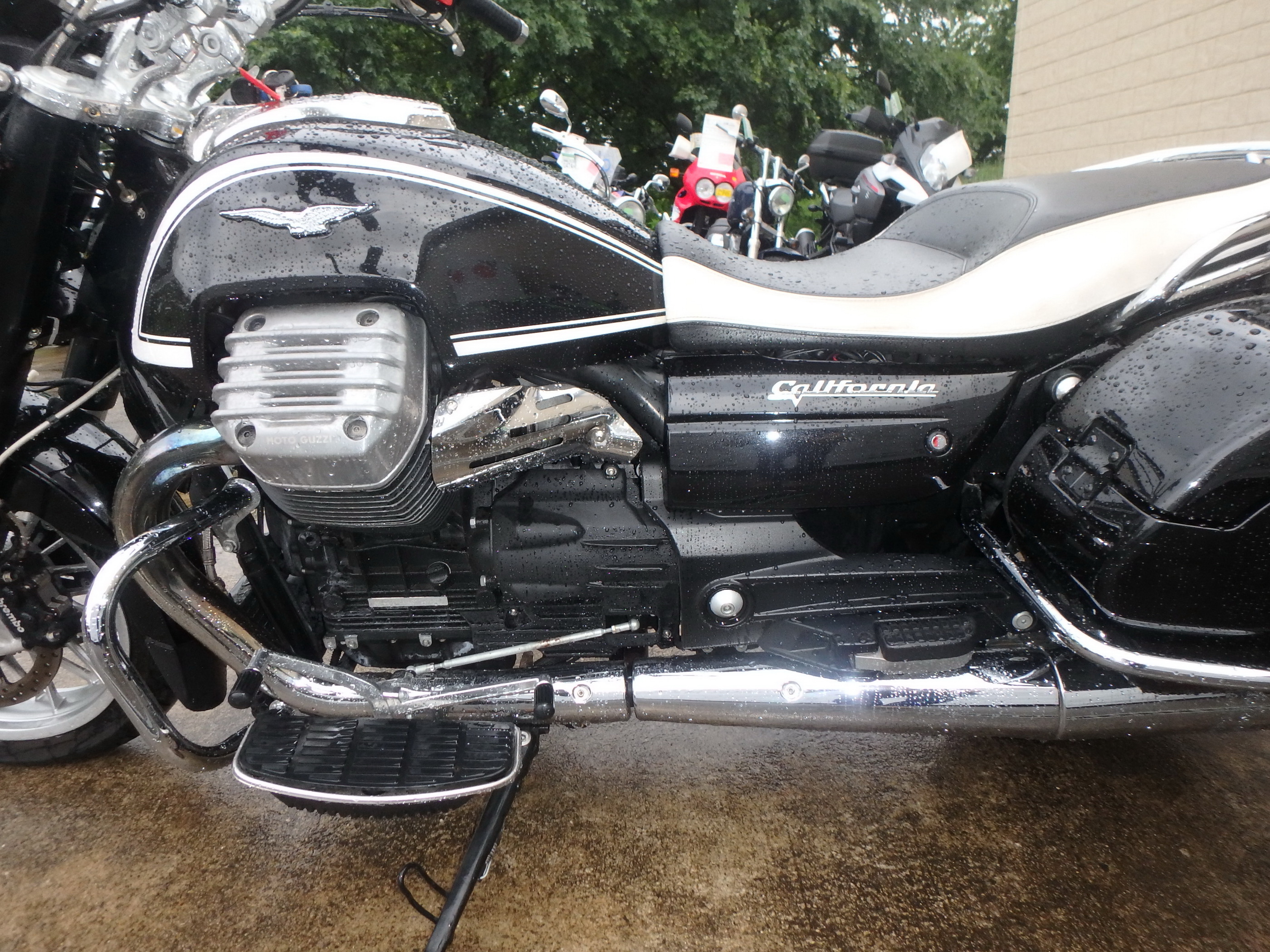

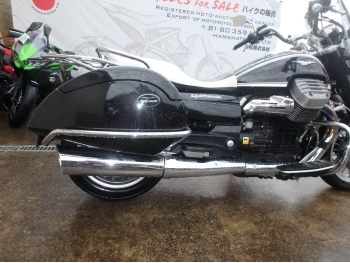

#5143 Мотоцикл Moto Guzzi California1400
статус:
Модель: California1400
Год: 2014
Объем: 1400 см3
Пробег: 15751 км.
из
Дополнительная информация
Make Model
California 1400 Touring S.E.
Year
2014

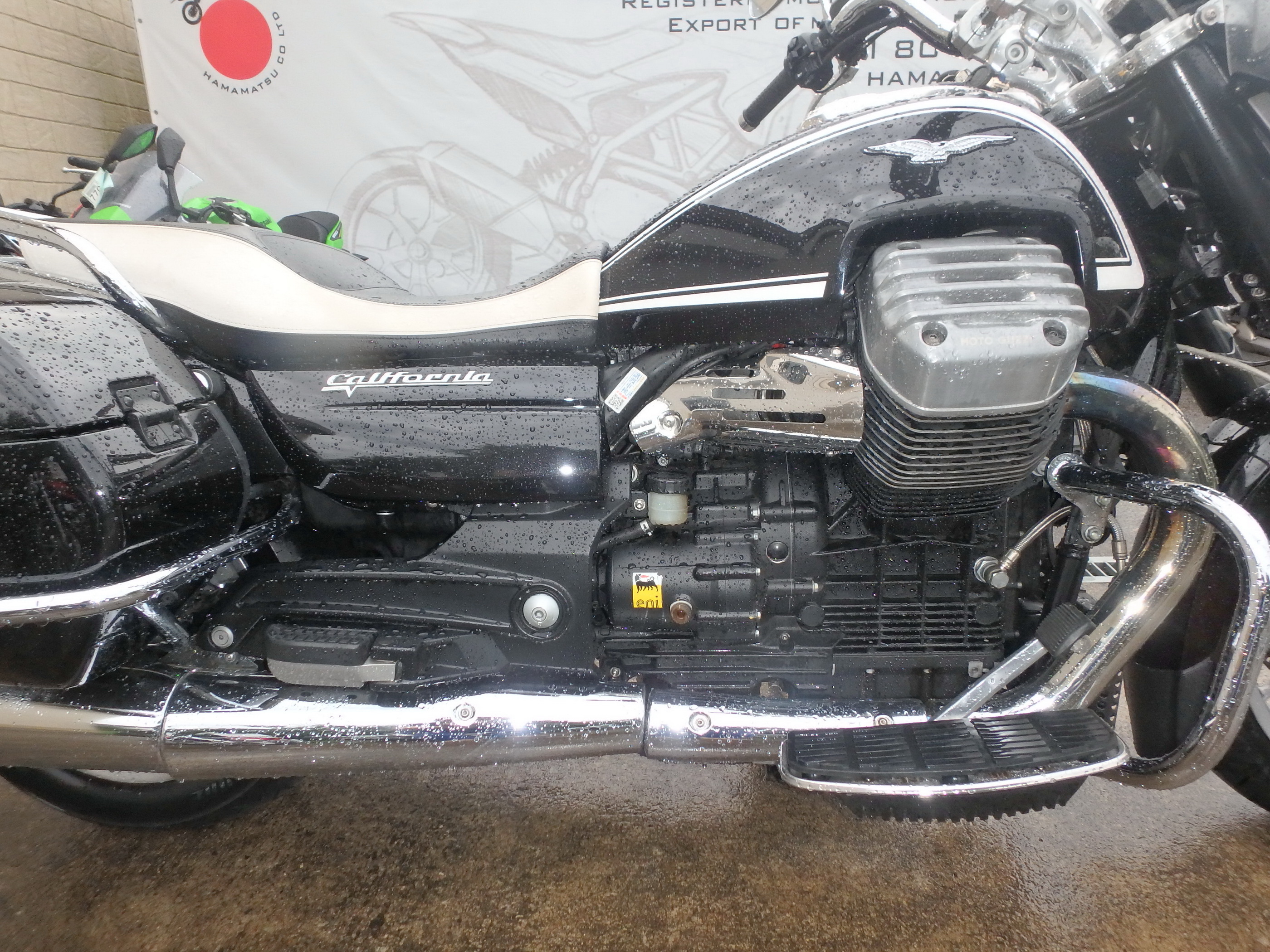

Engine
Four stroke, 90° V-twin, SOHC, 4 valves per cylinder
Capacity
1380 cc / 84.2 cu-in
Bore x Stroke
104 x 81.2 mm
Cooling System
Air/ oil cooled
Compression Ratio
10.5:1
Exhaust
stainless steel, 2-in-2 type, 3-way catalytic converter with double oxygen sensor Emissions compliance, Euro 4
Lubrication
Wet sump
Timing System Diagram
Intake valve opens 19° BTDC (1-mm checking clearance) intake valve closes 55° ABDC exhaust valve opens 49° BBDC exhaust valve closes 12° ATDC
Fuel Supply
Magneti Marelli IAW7SM; “ride by wire” Ш 52 mm throttle body, IWP 243 Magneti Marelli injectors, double oxygen sensor, integrated management of 3 engine mappings, traction control, cruise control
Ignition
Phased electronic Multipoint sequential injection
Spark Plugs
NGK LMAR8F, 2 per cylinder
Battery
12V - 18 Ah
Alternator
12 V - 550 W
Starting
Electric
Max Power
96 hp / 71 kW @ 6500 rpm
Max Torque
89 ft/lb / 121 Nm @ 3000 rpm
Clutch
Single-disc with integrated anti-vibration buffer
Transmission
6 speeds with final overdrive
Final Drive
Shaft
Gear Ratio
1st 17/38 = 1 : 2.235 2nd 20/34 = 1: 1.700 3rd 23/31 = 1: 1.348 4th 26/29 = 1: 1.115 5th 31/30 = 1: 0.968 6th 30/24 = 1: 0.8
Primary Drive
26/35 = 1: 1,346)
Final Drive Ratio
Double cardan joint and fixed bevel gear seat, drive ratio 10/36 = 1: 3.6)
Frame
Steel tubing, closed double cradle with elastic kinematic engine mounting system to isolate vibrations.
Front Suspension
Standard swingarm, Ш 46 mm, with radial calliper mounting bracket and telescopes on the stanchions
Front Wheel Travel
120 mm / 4.7 in
Rear Suspension
Swingarm with double shock absorber with adjustable spring preload.
Rear Wheel Travel
110 mm / 4.3 in

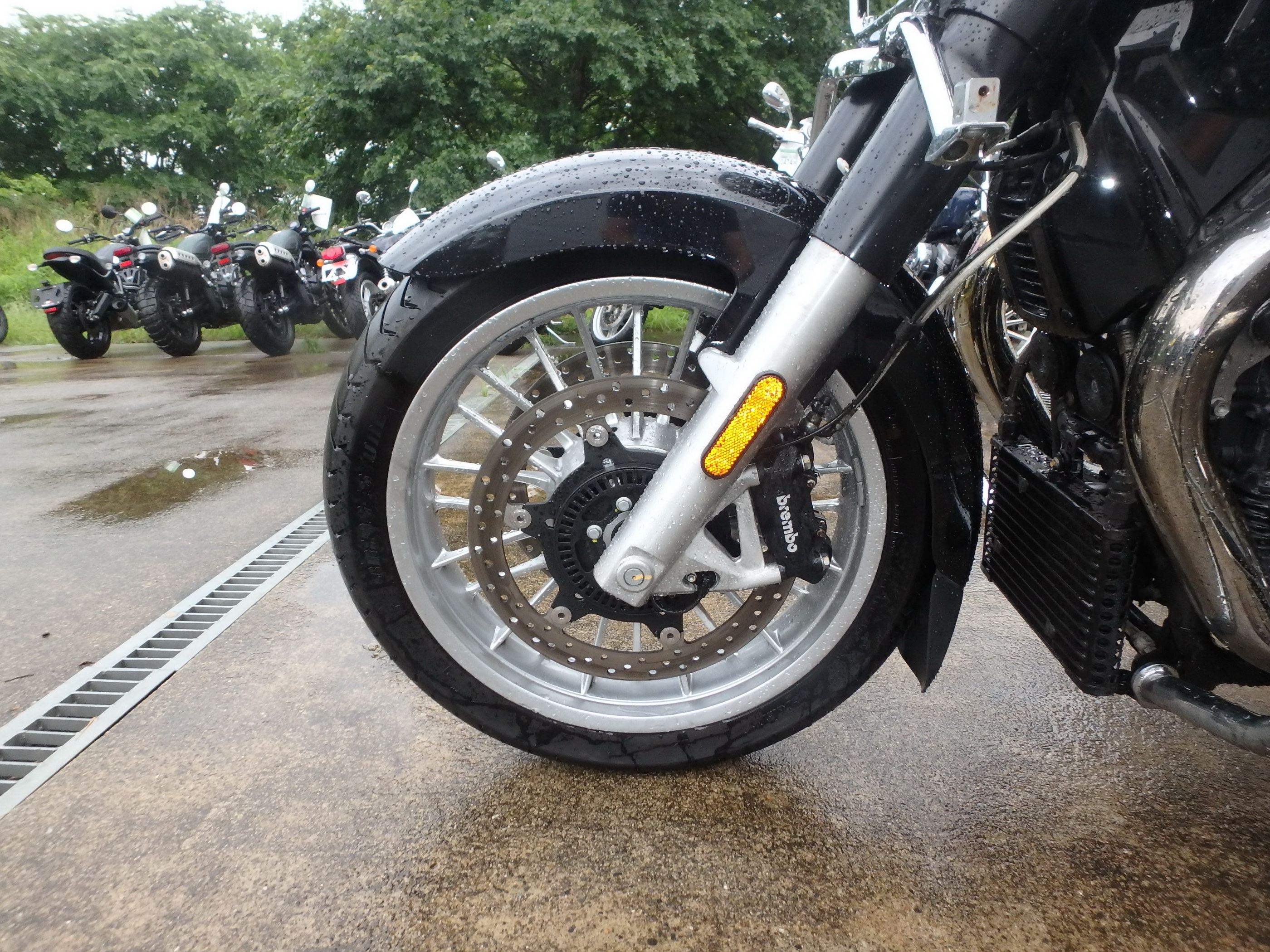

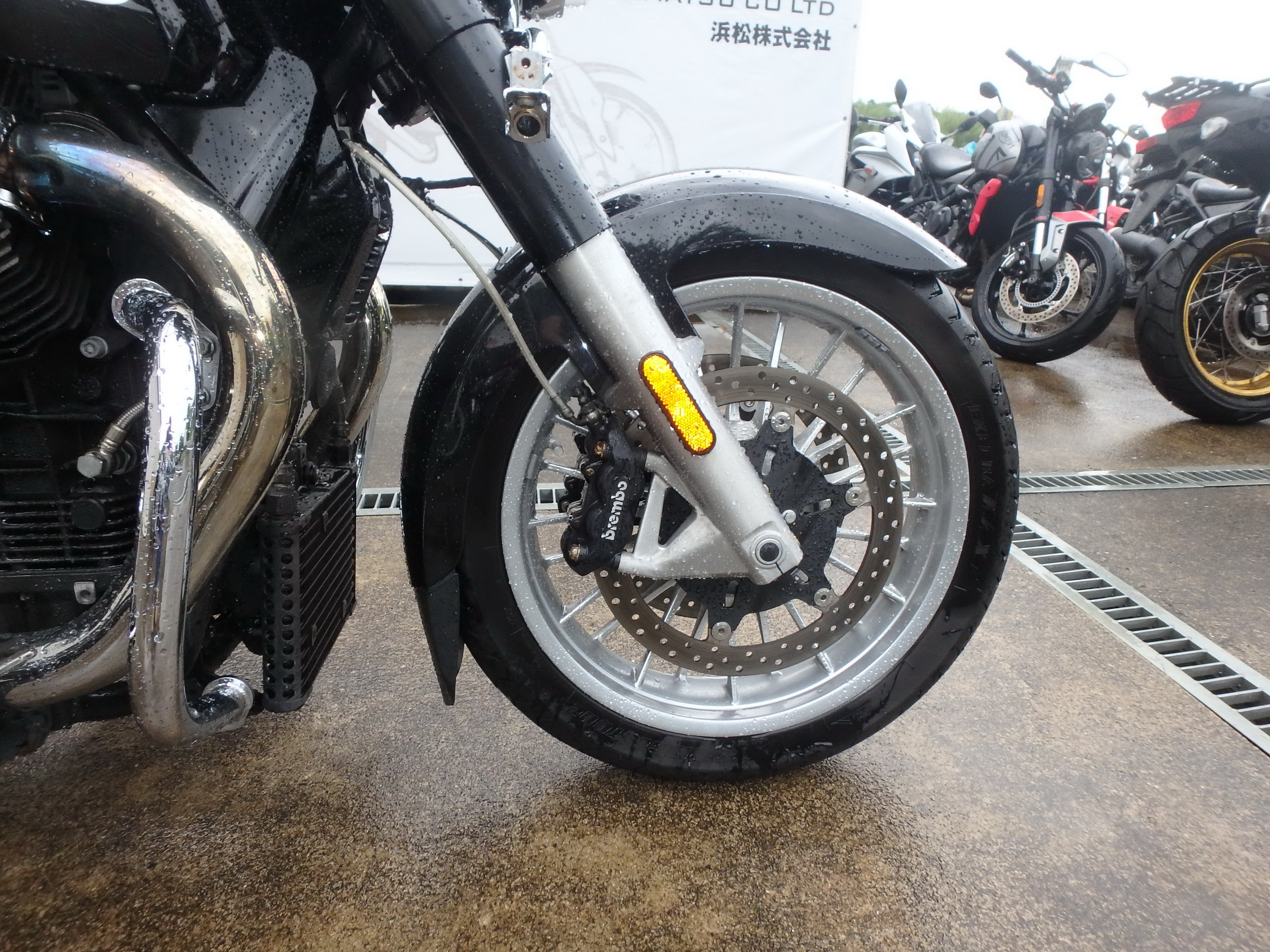

Front Brakes
2x 320 mm stainless steel floating discs, Brembo radial callipers with 4 horizontally opposed pistons
Rear Brakes
Single 282 mm stainless steel fixed disc, Brembo floating calliper with 2 parallel pistons
Front wheel
Aluminium alloy 3.50” x 18”
Rear Wheel
Aluminium alloy 6.00” x 16”
Front Tyre
130/70 R18
Rear Tyre
200/60 R16
Trail
152 mm / 6 in
Headstock Angle
32°
Steering Angle
38°
Dimensions
Length 2445 mm / 96.2 in Width 1030 mm / 40.5 in Height 1460 mm / 57.5 in
Wheelbase
1676.4 mm / 66 in
Seat Height
740 mm / 29.1 in - 720 mm / 28.3 in
Ground Clearance
165 mm / 6.4 in
Wet Weight
337 Kg / 742.9 lbs

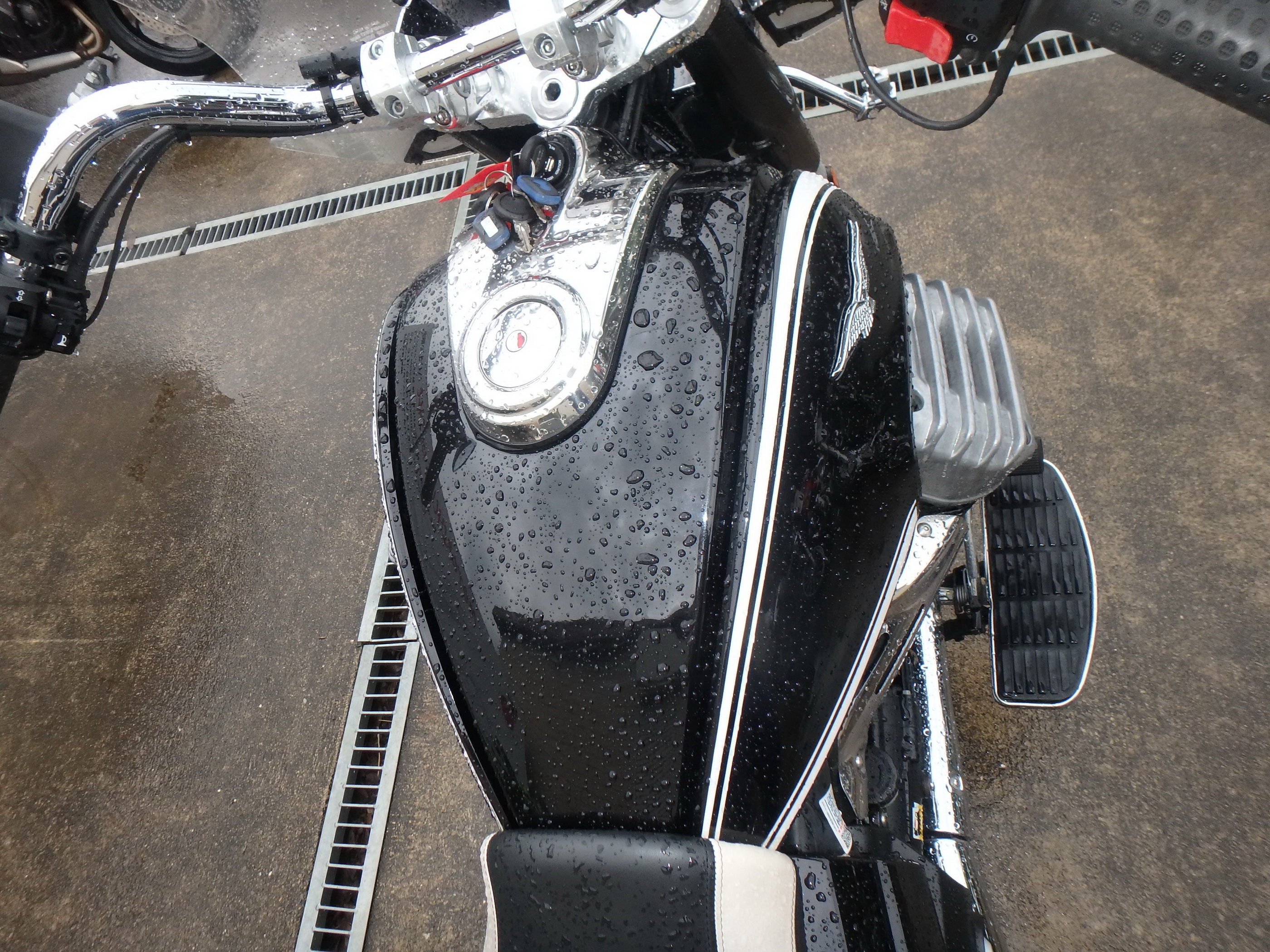

Fuel Capacity
20.5 Litres / 5.4 US gal
Reserve
5 Litres / 1.3 gal
